Technology Equipment Standards

Staff & Student Devices

The technology equipment standards ensure students and staff have access to reliable, age-appropriate, and future-ready tools to support learning, teaching, and administrative tasks. The goal is to create an equitable and innovative environment that enhances education through technology.

TK-2

Device: iPad Wi-Fi 64Gb Space Gray

Details:

Students use iPads as their primary device for classroom activities, digital learning, and creativity-based projects.
Devices are equipped with protective cases and age-appropriate educational apps aligned with curriculum standards.
Charging carts or storage solutions are provided for secure device storage.

Grades 3-5

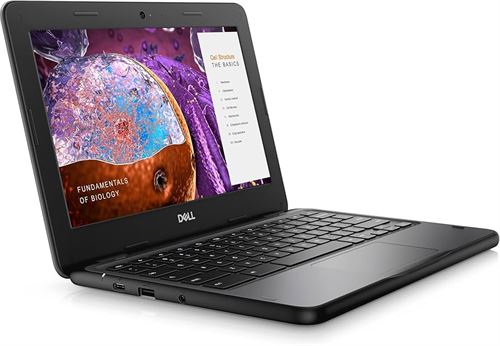

Device: Dell 3110 - 11.6" 4/32 Non-Touch Chromebook

Details:

Students transition to Chromebooks to support more complex tasks such as typing, research, and collaborative projects.
Chromebooks feature robust keyboards and compatibility with Google Workspace for Education tools.

Grades 6-8

Device: Dell 3110 - 11.6" 4/32 Non-Touch Chromebook

Details: Students continue to use Chromebooks, but with access to advanced applications for research, coding, multimedia editing, and STEM-based learning.

Certificated, Management, Office Staff

Device: iMac 24" Slv/8C CPU/8C GPU/8Gb/256Gb

Details: Certificated, management, and office staff are provided with laptops or MacBooks to support lesson planning, classroom management, and multimedia instruction.

SSAs

Device: Asus Chromebook Plus CX34

Details: Special Services Assistants are provided with Chromebooks.

Substitutes

Device: Asus Chromebook Plus CX34

Details: Substitutes are provided with Chromebooks.

Classroom Display Equipment

Each classroom is equipped with advanced display technology to enhance visual learning and teacher presentations.

Document Cameras

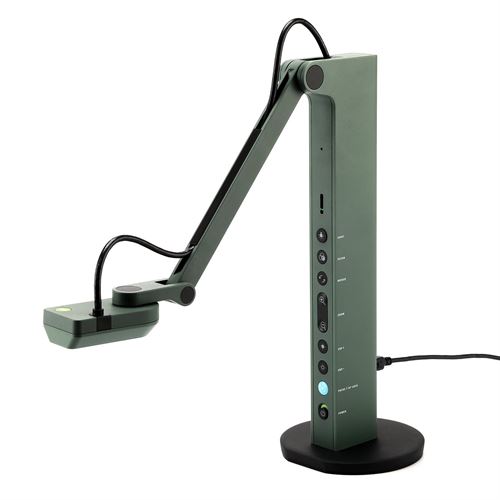

Device: Ipevo VZ-R HDMI/USB Dual Mode Document Camera

Details:

Allows teachers to display physical documents, books, and 3D objects onto the large screen via HDMI connection.
Supports live annotation and real-time demonstrations, enhancing interactive lessons.

Projectors

Device: Epson PowerLite L210SW Projector

Details:

A high-performance short-throw projector delivering crisp, bright images and videos.
Ideal for interactive whiteboards and presentations in classrooms with varying lighting conditions.

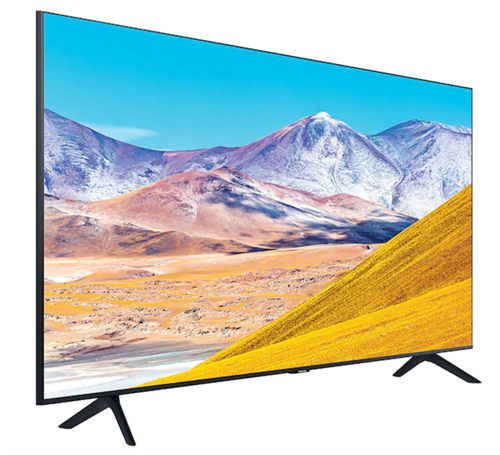

TVs

Device: Samsung 75" Series TVs

Details:

Wall-mounted displays offer large, high-resolution visuals for instructional videos, presentations, and digital content sharing.
Compatible with wireless screen mirroring for seamless teacher and student device integration.

Printers

Commercial Printer/Copiers and Scanners: Available in shared spaces for administrative and instructional use.
Classroom printers: Available in classroom for staff use.

Commercial Printers/Copiers

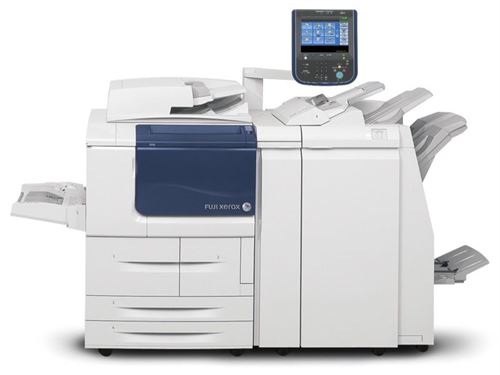

	Device: Xerox D95 Monochrome Multifunction Printer (or similar)

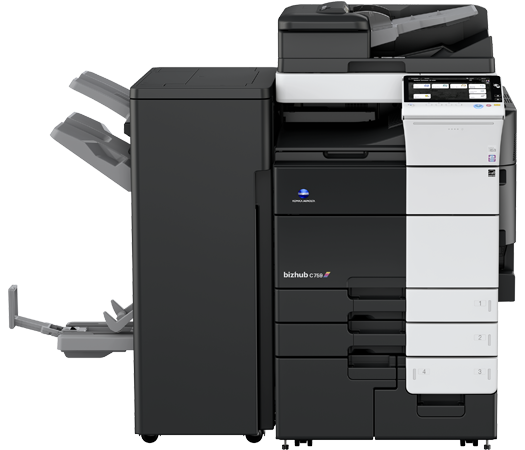

	Device: Konica Minolta Bizhub c759 (or similar)

Classroom Printers

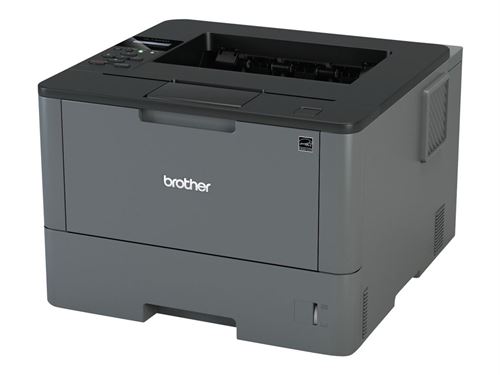

Device: Brother HL HL-L5210DW Desktop Wireless Laser Printer - Monochrome (or similar)

Network Equipment

Public school districts rely on clear network equipment standards to ensure secure, reliable, and scalable infrastructure. These guidelines prioritize compatibility, cybersecurity, efficiency, and growth, supporting seamless learning and safeguarding sensitive data.

Horizontal Cabling and Connectivity

Manufacturer	Part Number	Description
Panduit	PUR6AV04WH-G	CMR CAT6A
Panduit	CJ688TGWH	CAT6A Jacks
Panduit	CPP12WBL	12 Port Patch Panel
Panduit	WB89D	Mounting Bracket
Hoffman	ASE12X12X6	12"x12"x6" Box, Screw Cover
CPI	10622-012	Ground Bus Bar
Generic	6G-3031-04	#6 AWG Wire
CPI	40162-952	2 Hole Lugs
Panduit	NK2FIWY	Two Port Wall Faceplate
Stiffy	FIG201	2" J-Hooks
Panduit	T70BIW10	Raceway 10 Feet
Panduit	T70CIW10	Raceway Cover 10 Feet
Panduit	T70HB-X	Raceway Hanging Box
Panduit	T70DB-X	Raceway Device Bracket

IDF

Manufacturer	Part Number	Description
Tripp Lite	SRW18USDP	Tripp Lite SmartRack 18U UPS-Depth Wall-Mount
Tripp Lite	SRW12US	Tripp Lite SmartRack 12U Low-Profile Switch-Depth Wall-Mount
Panduit	U03N11L	N1C L3000 3000VA Rack/Tower UPS
Panduit	U02N11L	N1C L2200 2200VA Rack/Tower UPS
Panduit	U01N11L	N1C L1000 1000VA Rack/Tower UPS
N1 Critical Technologies	N1C.L3000	N1C L3000 3000VA Rack/Tower UPS
N1 Critical Technologies	N1C.L2200	N1C L2200 2200VA Rack/Tower UPS
N1 Critical Technologies	N1C.L1000	N1C L1000 1000VA Rack/Tower UPS
Panduit	PZWMC18P	18U UPS-Depth Wall-Mount
Panduit	PZWMC12P	12U Low-Profile Switch-Depth Wall-Mount
Tripp Lite	Lite	ENBRKT Tripp Lite Universal Wall Bracket For WAP
Zero Connect	6A160-007	7' CAT6A Patch Cord
Zero Connect	6A160-005	5' CAT6A Patch Cord
Zero Connect	6A160-001	1' CAT6A Patch Cord
Panduit	CPP24WBLY	24 Port Patch Panel Flat

Backbone Cabling

Manufacturer	Part Number	Description
Corning	006T8F-31191-29	6 Strand In/Out OM4
Belden	ECX-01U	1U Fiber Enclosure
Belden	FFSX12LD	SM 12 Port LC Adapter Panel
Belden	FTSLC900FS01	SM LC Fuselight

Cambium

Manufacturer	Part Number	Description
Cambium	C600500A004A	Cambium Networks cnWave V5000 802.11ay 60GHz Distribution Node
Cambium	C600500C001A	Cambium Networks Wireless Bridge cnWave V1000 802.11ay 60GHz
Cambium	C000000L033A	Cambium Networks 56 VDC Gigabit Ethernet Surge Suppressor
Cambium	C000000L124A	Cambium Networks Cable Gland Long For 6-10mm cbl M25
Cambium	C000000L137A	Cambium Networks Network Device Mounting Bracket-Pole
Cambium	C000000L138A	Cambium Networks Ground Cable-M6 Ring Terminal to M6 Ring
Cambium	N000000L142A	Cambium Networks 60W 56V 5Gbe Level 6 Indoor DC POE Injector
Cambium	N000900L031A	Cambium Networks 720mm UL Rated US Power Supply Cord C5
Cambium	N000082L173-A	PTP 820 Grounding Kit For CAT5E, CAT6A And F/UTP 8mm Cable 3.15cm
Cambium	MMK0001-L	Mast And Pole Mount Kit For Inscape POE Switch
Cambium	LPS840AT-T2	Inscape Data Outdoor 4-Port Gigabit POE Switch

Phones

The district employs the 101Voice VOIP phone system to ensure reliable and efficient communication. This cloud-based solution supports advanced features like call routing, voicemail, and emergency notifications, enhancing connectivity across campuses.

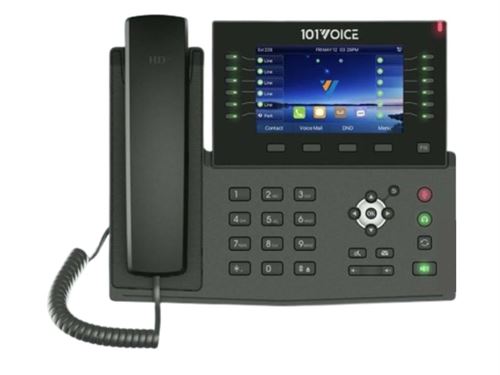

101Voice IP982G

Device: 101 Voice IP982G

101Voice IP860G

Device: 101 Voice IP860G

Security Cameras

The district utilizes the Verkada security camera platform for its advanced security features, ease of use, and scalability. Verkada’s cloud-based system ensures real-time monitoring, secure data storage, and seamless integration with existing infrastructure, providing a reliable solution to enhance campus safety.

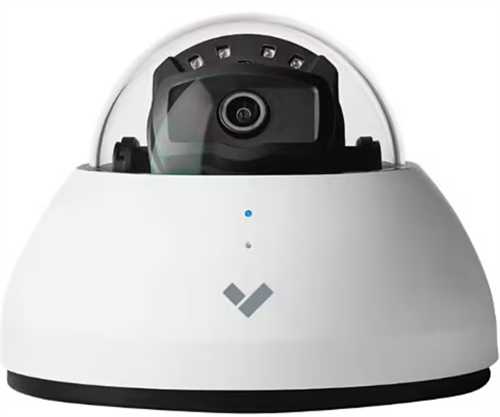

CD62-30E-HW

Device: Verkada Dome Series CD62-E - Network Surveillance Camera

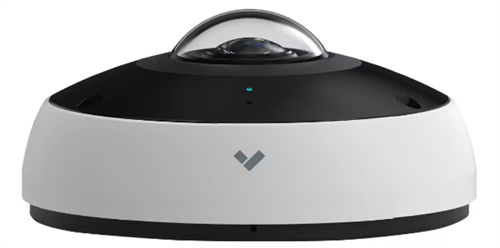

Fisheye - CF81-E

Device: Verkada CF81-E Fisheye Security Camera

Multi-Sensor - CH52-E

Device: Verkada CH52-E Multisensor Security Camera

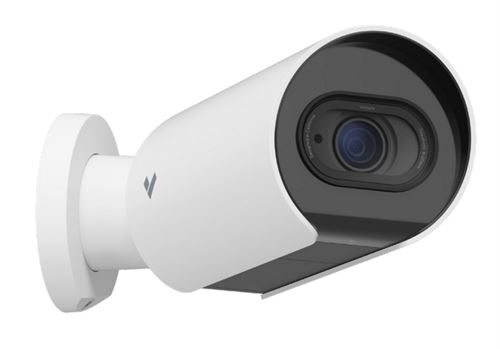

Verkada CB62-TE Bullet

Device: Verkada CB62-TE Bullet Security Camera with Telephoto Zoom Lens

Informacast Fusion Public Address and Bell System

The district uses the InformaCast Fusion platform integrated with Advanced Network Devices clock/speakers for synchronized communication and scheduling. This system ensures reliable emergency alerts, announcements, and bell management, enhancing safety and operational efficiency across all campuses.

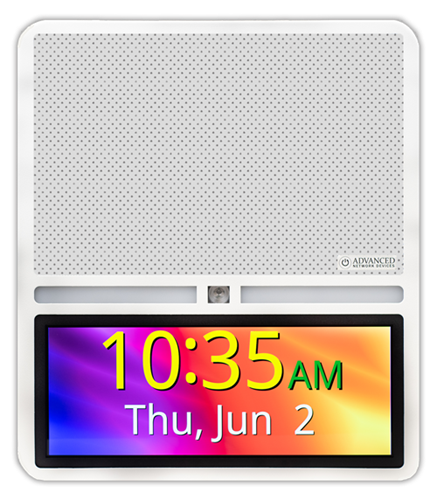

Advanced Networks IP Speaker With HD Display

Device: Advanced Networks IP Speaker With HD Display IPSWDHD-MW

Advanced Networks HP IP Display

Device: Advanced Networks HP IP Display IPCSHD-MB

Advanced Networks Large LED IP Signboard

Device: Advanced Networks Large LED IP Signboard IPSIGNL-RWB

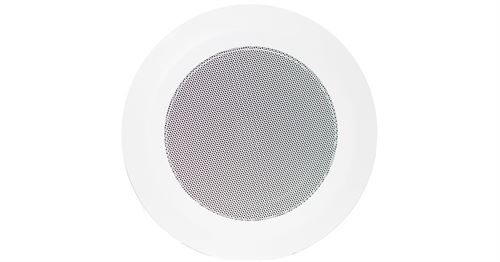

Advanced Networks Round Ceiling IP Speaker

Device: Advanced Networks Round Ceiling IP Speaker IPSCM-RME

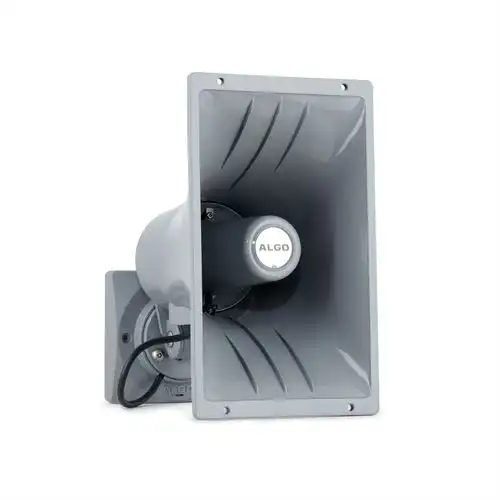

Advanced Networks Outdoor IP Compresses Horn

Device: Advanced Networks Outdoor IP Compresses Horn IPSWS-SM-O

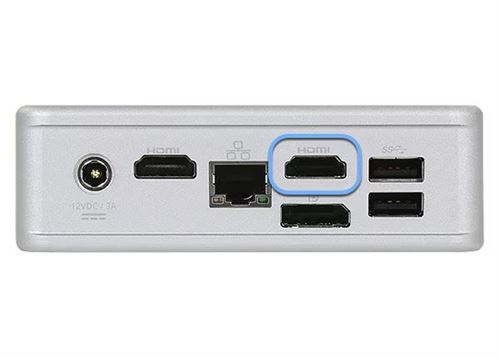

InformaCast Fusion Server Appliance

Device: InformaCast Fusion Server Appliance IPTA-IFS

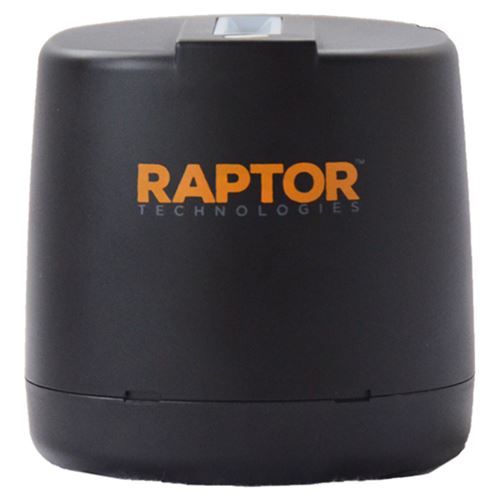

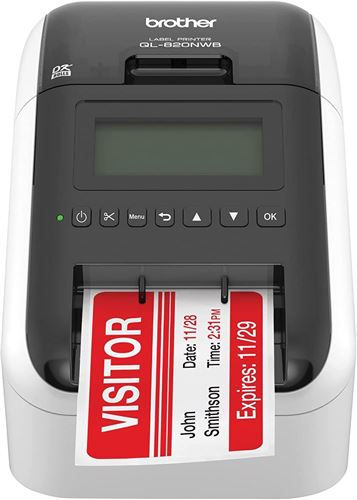

Raptor Visitor Management System

The district utilizes the Raptor Visitor Management System to enhance campus safety. This system streamlines visitor check-ins, performs instant background checks, and maintains a secure record of campus visitors, ensuring a safe environment for students and staff.
